pibooth
# Summary
The pibooth project has been a great resource to building an easy raspberry pi photobooth. We’ve had so much fun with it and it has made an appearance at two parties so far.
# Features
- take photos, save and sync photos, and print photos at will
 - Easy to use
 - cheap (most expensive component = raspberry pi)
 - written in python and open source
 - Nice plugin architecture
- ability to automatically send to a google photos album
 - ability to modify picture layout with a draw.io template


# Final Results
Success!!

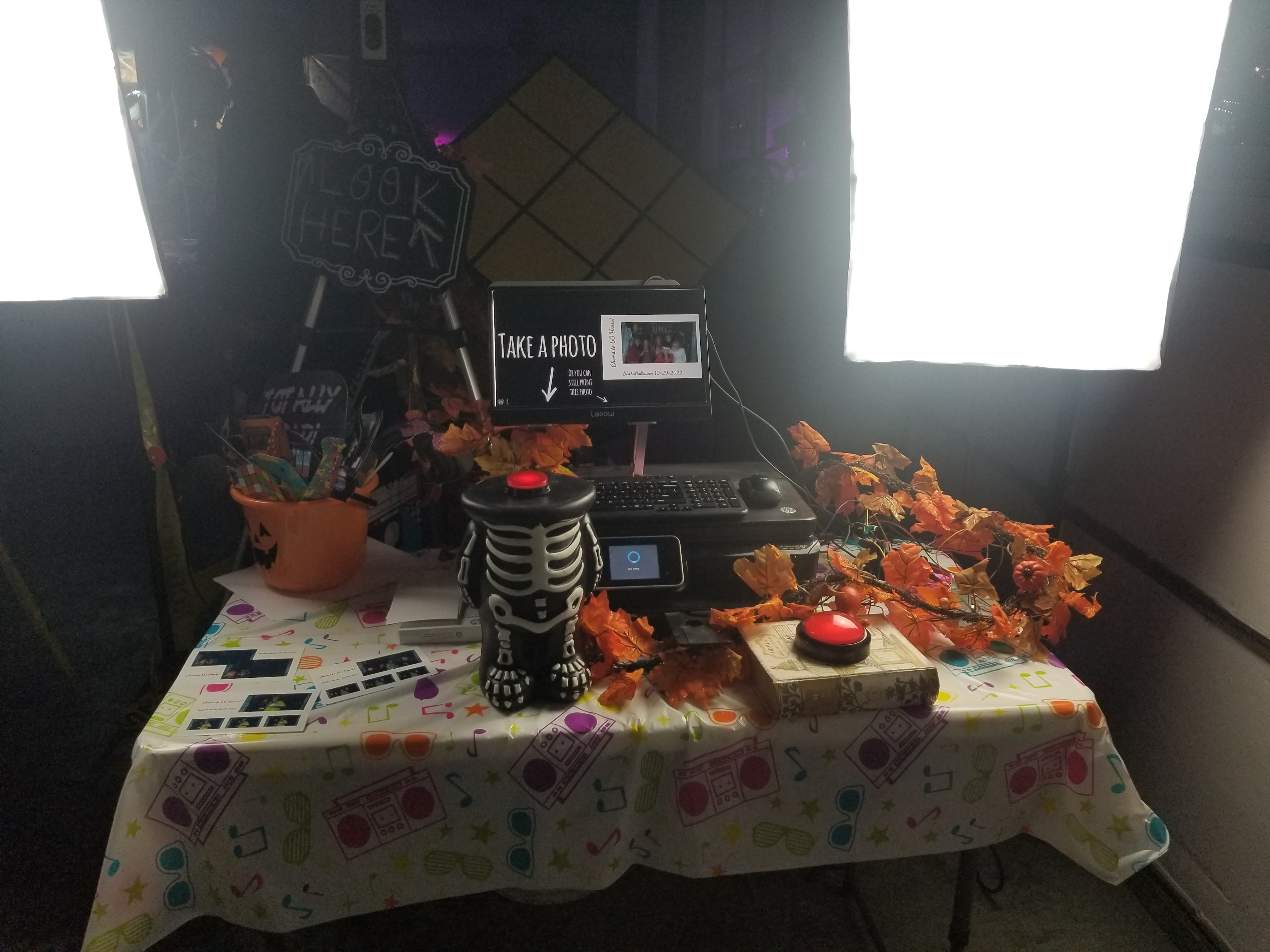

# Version 1- Oct ‘22
Halloween themed - Worked great but I wasn’t happy about how many cables I had lying around…

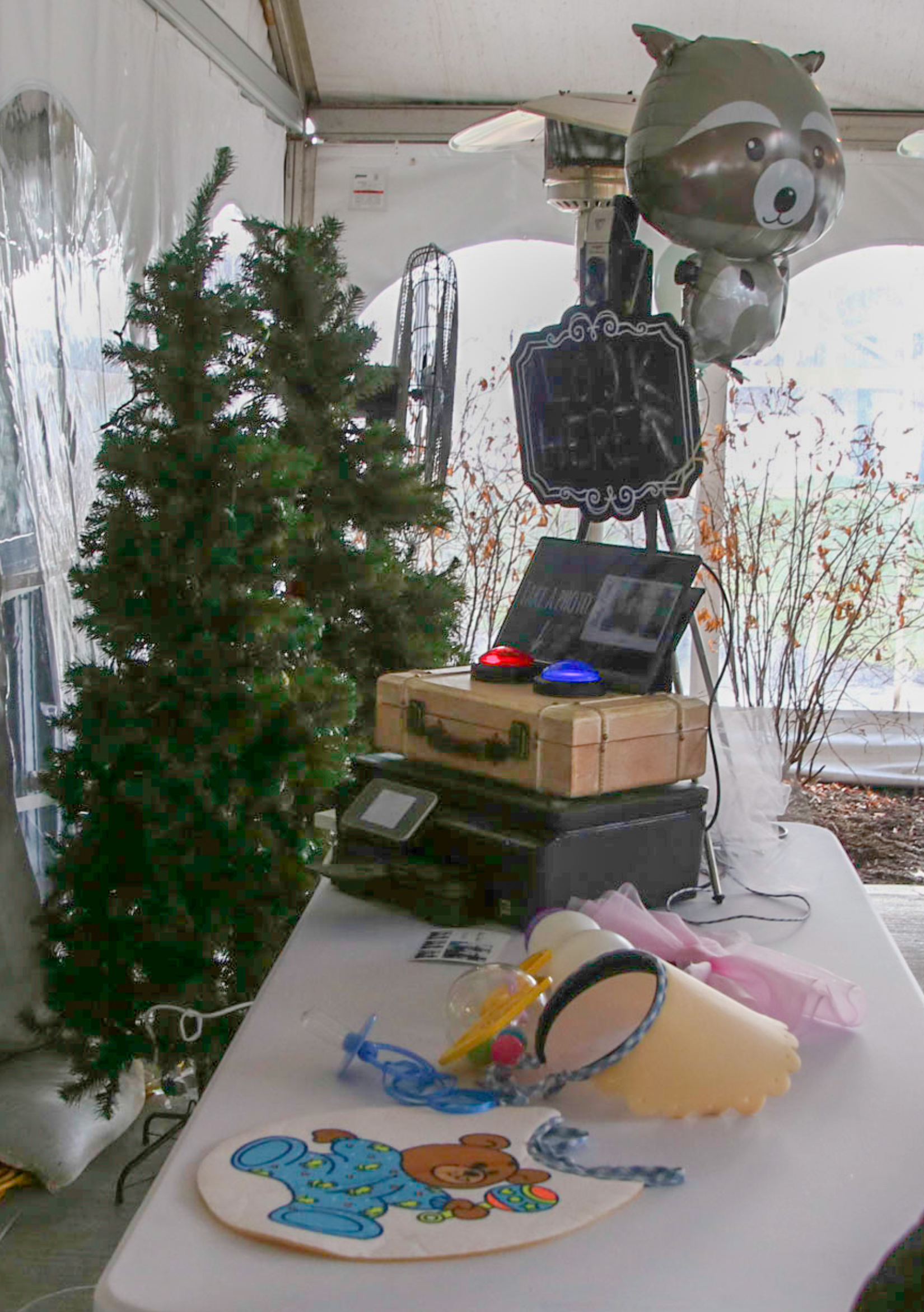

# Version 2 - March ‘23
Baby shower themed - was a hit! I notice that it is difficult to look at the camera up above when the screen is a foot below it. We get a few pictures where everyone is looking at the screen instead of the camera. Stay tuned for improvements for version 3…



# Parts
- Raspberry Pi 4B
 - Case
 - USB-C Power supply
 - Micro-HDMI to mini HDMI Cable
 - Display with mini HDMI Port
 - Printer with USB connection
 - Raspberry Pi camera with ribbon cable

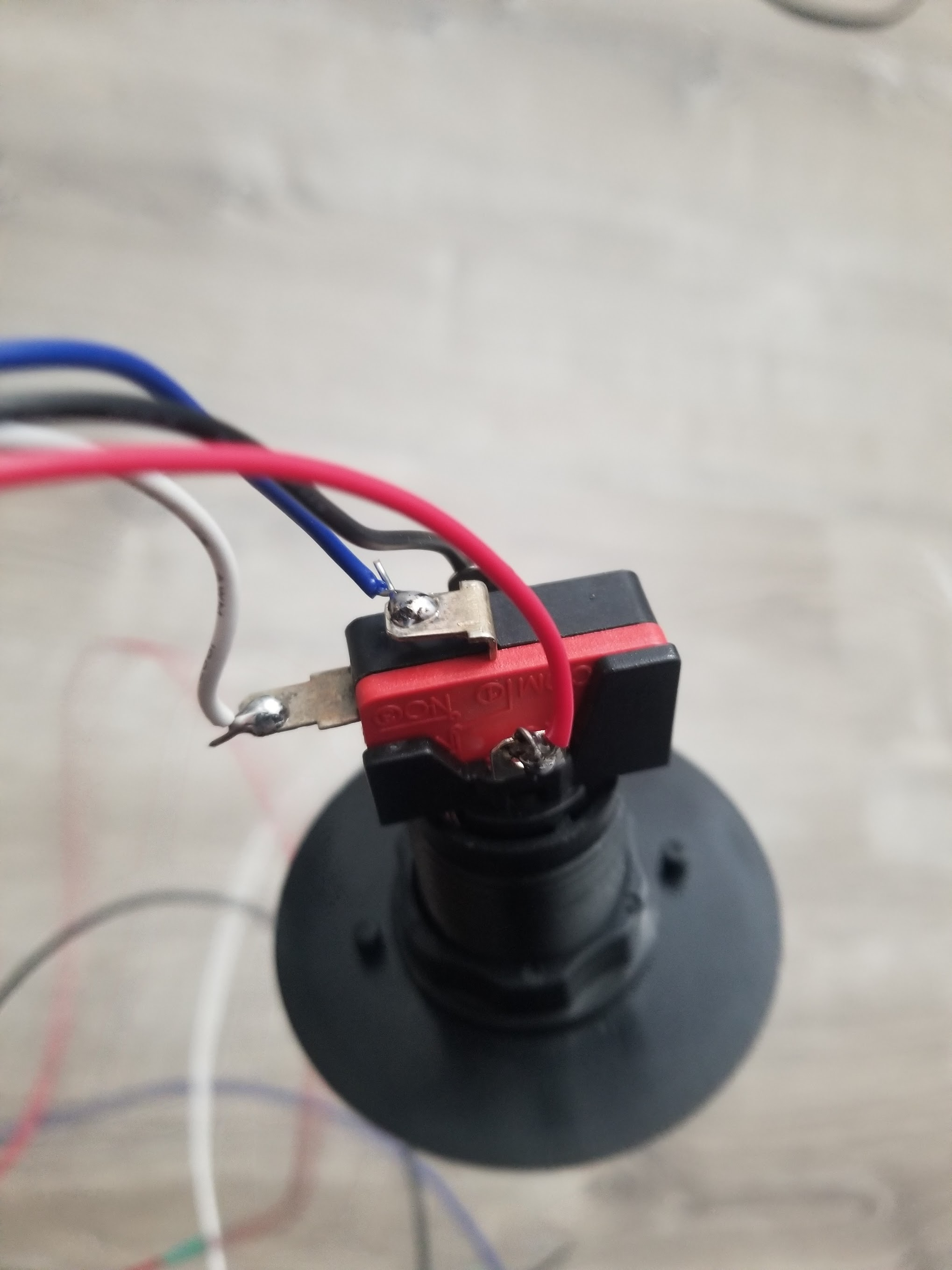

 - 2x Arcade buttons
 - 5V to 12V converter cable
 - female headers
 - 22-26 awg connector wires
 - a nice wooden box from Michaels craft store

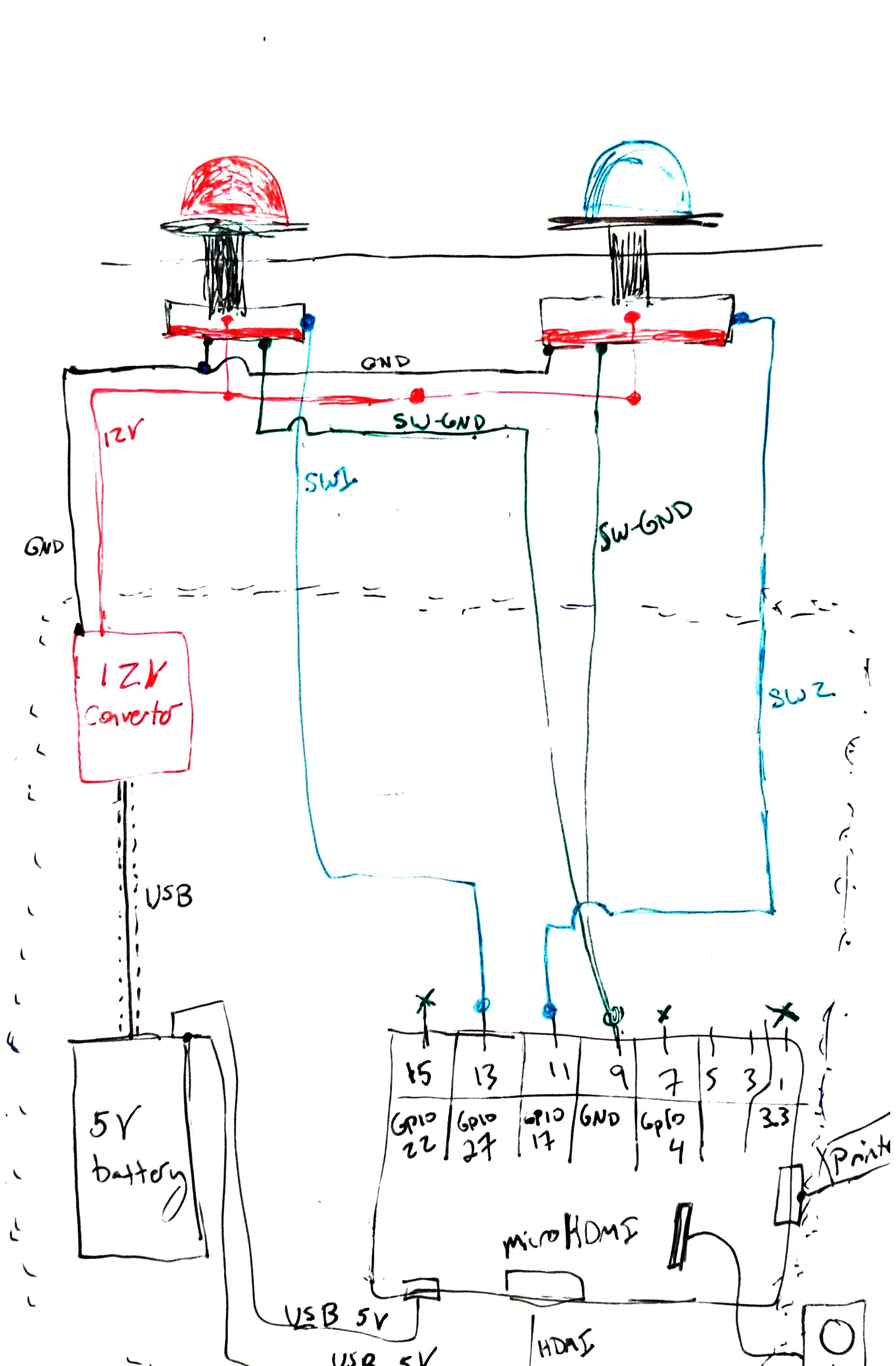

# Schematic

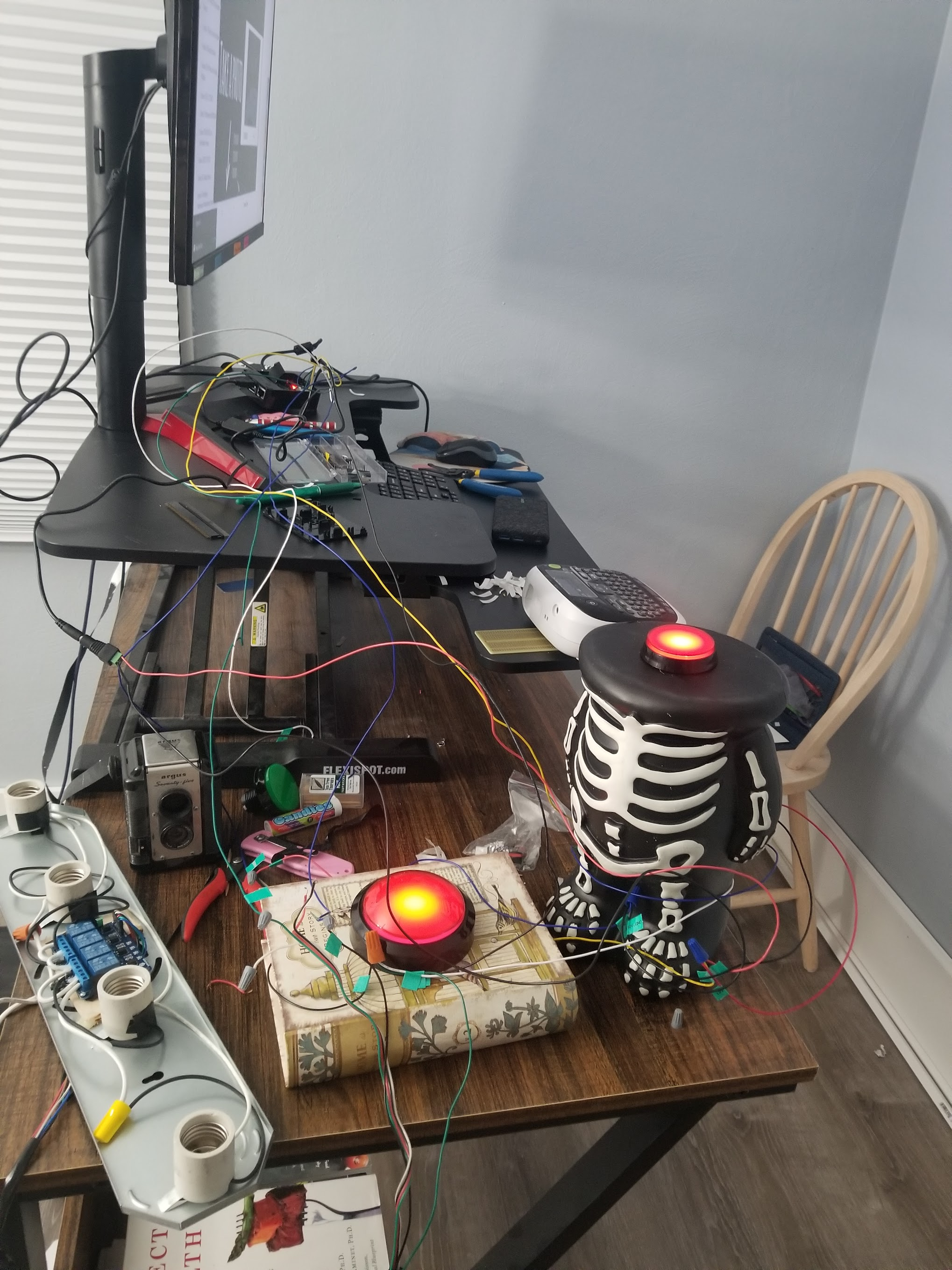

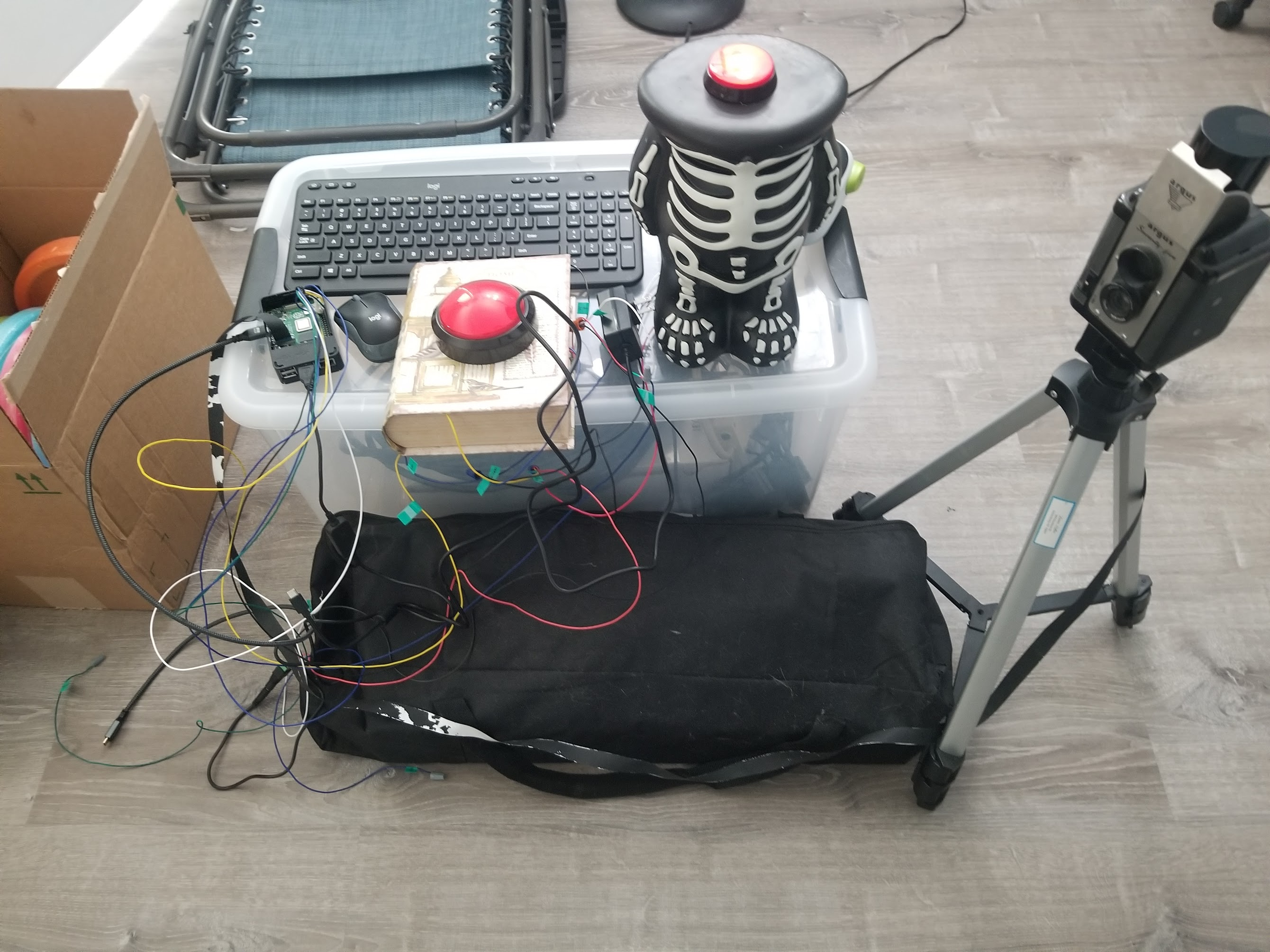

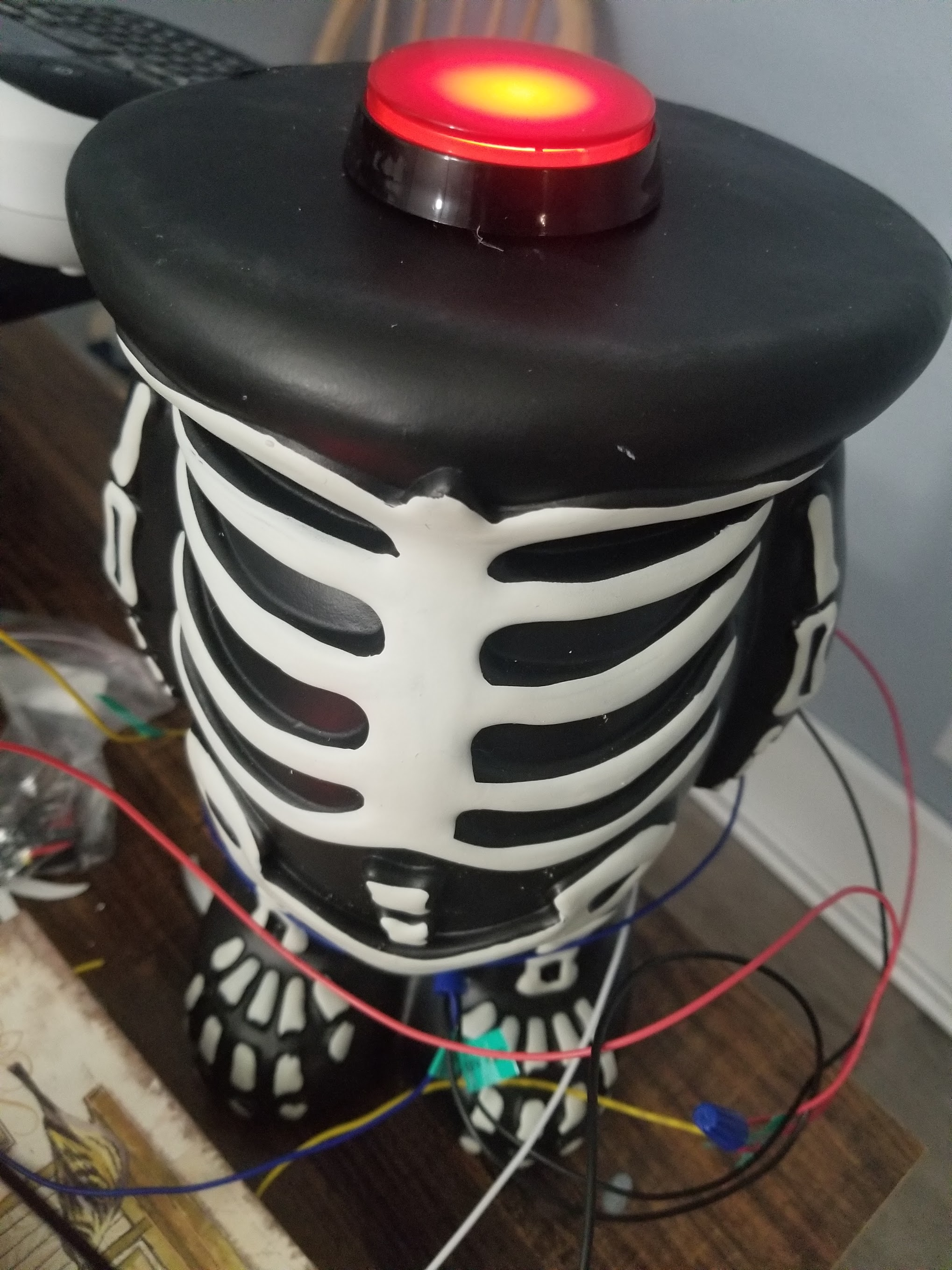

# Version 1 Build Photos

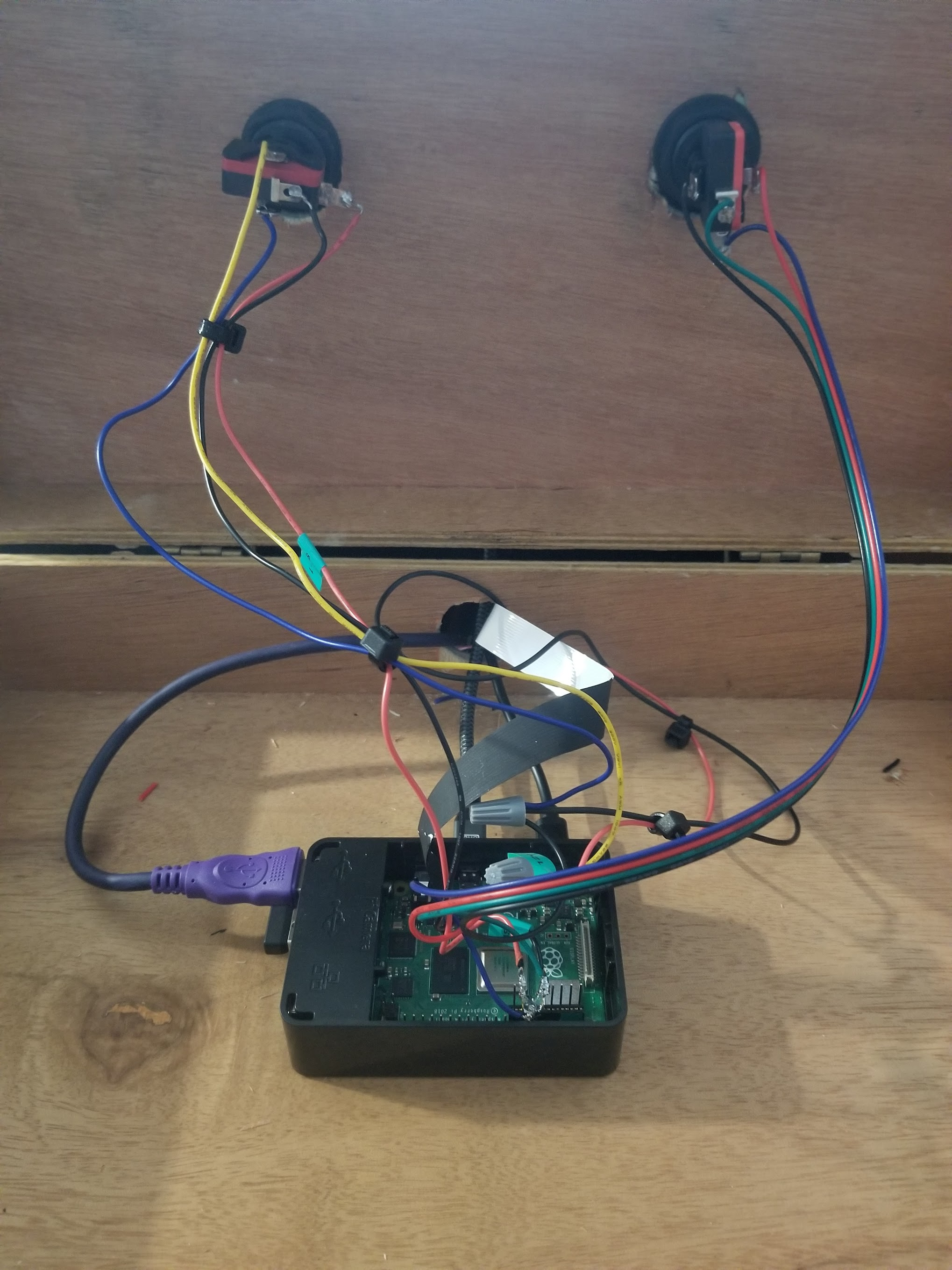

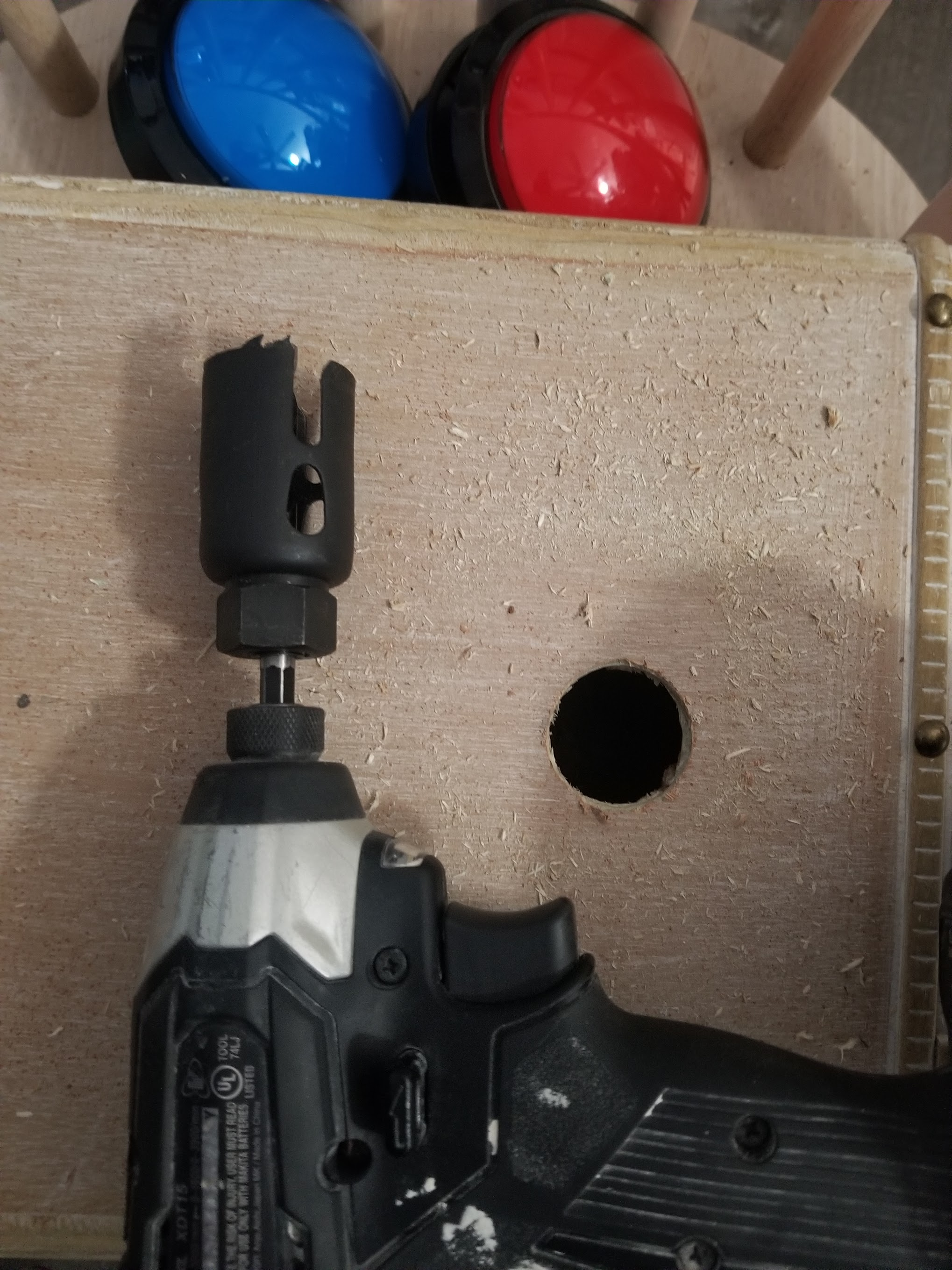

# Version 2 Build Photos
